Pressure Rating PN 30 (435 psi) *
Temperature Rating max.100°C (212°F) water (no steam,depending on pressure)
For higher Temperatures and steam see Fig. 594 on page 52

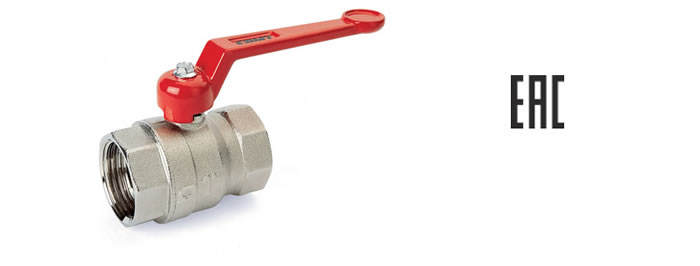

Nickel Plated Brass Body
Full Bore
Threaded Ends according to ISO 228
Blow Out Proof Stem
Chrome Plated Ball
* 18°C (64,4°F) water

• 	1 CW617N - DIN EN 12164/5
  	2 PTFE
  	3 CW617N - DIN EN 12164/5
  	4 CW617N - DIN EN 12164/5
  	5 CW617N - DIN EN 12164/5
  	6 NBR 70 Shore
  	7 Aluminium Al Si 11 Cu 2 (Fe)
  	8 Steel, zinc plated - Stahl, verzinkt
