Pressure Rating: MOP 5 (72,5 psi) gas
                           PN 40 (580 psi) water *
                           PN 10 (145 psi) potable water
Temperature Rating max. 100°C (212°F) water (no steam, depending on pressure)
For higher Temperatures and steam see Fig. 594 on page 52 Min. / max. ambient Temperature -20°C to +60°C (-4°F to + 140°F) for gas application
Brass Body
Full Bore
Threaded Ends according to ISO 7 Blow Out Proof Stem
Chrome Plated Ball

* 18°C (64,4°F) wate

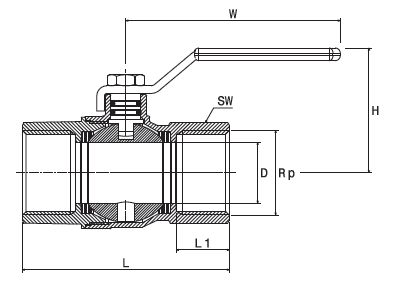

Dimensions in mm 492 FF ST  Rp D L L1 SW H W 49204 FF ST 1/2” 15 58 15 25 42 85  49206 FF ST 3/4” 20  68 16,3 31 46 85 49208 FF ST 1” 25 82 19,1 38 50 85 49210 FF ST 1 1/4” 32 94 21,4 47 64 110 49212 FF ST 1 1/2” 40 103 21,4 53 69 110 49216 FF ST 2” 50 126 25,7 66 88 135
