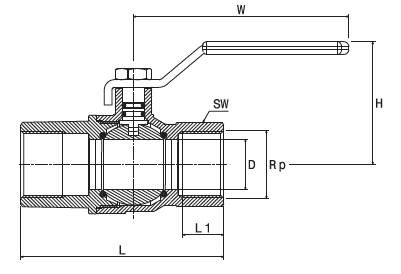

Dimensions in mm
| 595 HT | Rp | D | L | L1 | SW | H | W |
|---|
| 59503 HT |
3/8” |
10 |
60 |
11,4 |
21 |
40 |
70 |
| 59504 HT |
1/2” |
15 |
75 |
15 |
26 |
47 |
90 |
| 59506 HT |
3/4” |
20 |
80 |
16,3 |
32 |
49 |
90 |
| 59508 HT |
1” |
25 |
90 |
19,1 |
41 |
61 |
135 |
| 59510 HT |
1 1/4” |
32 |
110 |
21,4 |
50 |
65 |
135 |
| 59512 HT |
1 1/2” |
40 |
120 |
21,4 |
55 |
84 |
180 |
| 59516 HT |
2” |
50 |
140 |
25,7 |
70 |
90 |
180 |
|
Application
The Gas Safety Shut-off Valve in straight and angle pattern is used for installations according to DVGW-TRGI 2008 which use gases according to DVGW-Arbeitsblatt G 260 Part 1 and are subject to a maximum allowable operating pressure of 5 bar.
These gas installations are usually central gas heating systems and water heaters, such as instantaneous water heaters.
According to DVGW-TRGI 2008 and the German Fire Code Draft Recommendation (FeuVo) of 02/95, Edition 09/97, §4 Paragraph 6, the thermally released steel shut-off device (TAE) automatically shuts off the gas fl ow at temperatures above 100°C (212°F) and remains closed at 650°C (1202°F) for at least 30 minutes.
The IMT Gas Safety Shut-off Valves automatically shuts off the gas fl ow already at temperatures between 92°C and 100°C (198°F -212°F) within 45 seconds and keeps the installation at 925°C (1697°F) for at least 60 minutes gas tight.
