Description
Three-Way Ball Valve Fig. 543 (for technical details see Page 71) complete with reversible synchronous electric actuator made of self-extinguishing polyamide resin or polycarbonate with high mechanical resistance according to UL 94 VO.
Protection Class: IP 42 (IP 65 on demand) / IP 65 standard for actuator type 030.500
Power supply 230 VAC ± 10% - 50 Hz / 24 VAC ± 10% - 50 Hz on demand
Switching current of auxiliary switch 10 (2) A 250 VAC EN 61058-1 for actuator type 030.080
16/4 A 250 VAC EN 61058-1 for actuator type 030.100 and 030.500
Switching capacity of auxiliary switch 400 VA
Ambient temperature -10°C to +50°C (14°F to +122°F) non condensing
Valve connection ISO 5211 Flange-DIN 3337 F03-Square 11mm (F05-Square 11mm for actuator type 030.100 and 030.500)
Relay for ON/OFF operation on demand (Fig. 030.080R – 030.100R – 030.500R)
Actuator Type 030.080 for ball valve Fig. 543 up to 3/4” (made of polyamide resin)
Power consumption 3 VA
Running time for 90° angle 60/120 sec.
Output torque max. 10/12 Nm.
Manual Lever Handle as standard, without or with an auxiliary switch
Actuator Type 030.100 for ball valve Fig. 543 1” and 1 1/4” (made of self-extinguishing polyamide resin, housing cover made of polycarbonate)
Power consumption 4 VA
Running time for 90° angle 60/180 sec.
Output torque max. 18/20 Nm.
Manual Lever Handle as standard, without or with one or two auxiliary switches
Actuator Type 030.500 for ball valve Fig. 543 1 1/2” - 2” (with case bottom made of aluminium and housing cover made of self-extinguishing polycarbonate)
Power consumption 12 VA
Running time for 90° angle 60 sec.
Output torque max. 70 Nm.
Electric actuation, two auxiliary switches
 |

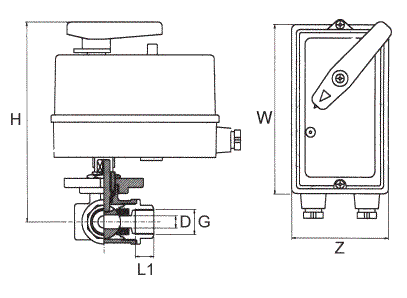

Dimensions in mm
|
