123 - Automatic High Pressure Air Vent with Stopvalve

Structural Pressure 18 bar (261 psi)
Working Pressure 11 bar (159,5 psi)
Temperature Rating max. 110°C (230°F) water (no steam)
Chrome Plated Brass Body and Cap
Fluid: water and water/glycol mixtures (30%).

Ask a question about this product

Description

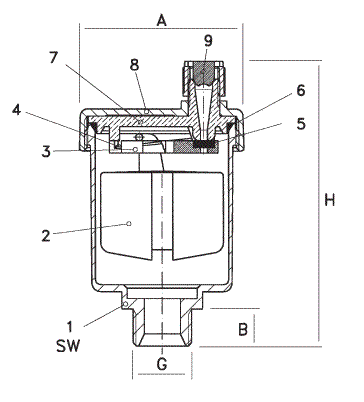

	1 Cu Zn 40 Pb 2 - DIN EN 12165
	2 Polypropylene
	3 Norylic Resin
	4 Stainless Steel
	5 NBR 50 Shore
	6 NBR 70 Shore
	7 Polyacetalic
	8 Cu Zn 40 Pb 2 - DIN EN 12165
	9 Cu Zn 39 Pb 3 - DIN EN 12164

Dimensions in mm

123	G	B	SW	H	A
12301	1/8”	10,5	23	82	47
12302	1/4”	10,5	23	82	47
12303	3/8”	10,5	23	82	47
12304	1/2”	10,5	27	82	47

Stop Valve for High Pressure Air Vent Figure 111C

Chrome Plated Brass
Brass Insert for 3/8”
Plastic Insert for 3/8”x 1/2”
With O-Ring at the connection with the Air Vent

111C	Size
11153C	3/8“ x 3/8”
11155C	3/8“ x 1/2“
