303K - Backflow Preventer Assembly Type BA

     BRL-K646

Backflow Preventer Assembly Type BA according to DIN EN 1717.
According to this standard the water quality falls into 5 classes depending on the degree of contamination.
This assembly provides protection against non-potable water up to class of risk 4; the ones which may be protected through a device.
The highest class of risk 5 has to be secured only through a free outlet.
IMT Backflow Preventers work according to the reduced pressure zone principle, the three-chamber system, where the intermediate pressure zone, separated from the other two through a check valve, can be vented to the atmosphere. This occurs automatically when the pressure drop between upstream and intermediate pressure zone reaches the value of 0,14 bar.
DVGW certified.

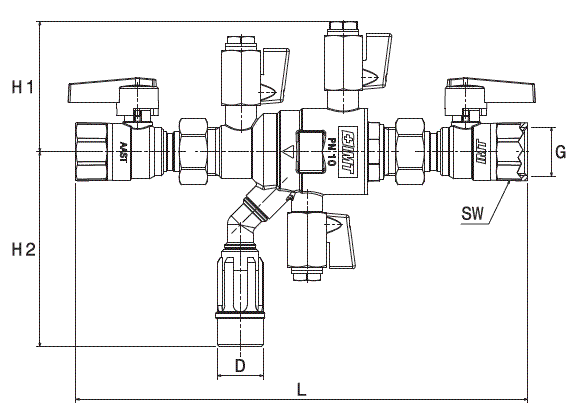

Backflow Preventer Assembly 1/2" and 3/4” consisting of:
Backflow Preventer Type BA Fig. 309 DVGW and KIWA certified
Test Cocks Fig. 581 and Shutoff Valves Fig. 583

Forged Brass Body
Chrome Plated Test Cocks

Structural Pressure PN 10 (145 psi)
Temperature Rating max. 65°C (149°F)
Short peaks max. 80°C (176°F)
Fluid: water
